Laminations

Nickel Alloy Laminations

Please click on the PDF for more details.

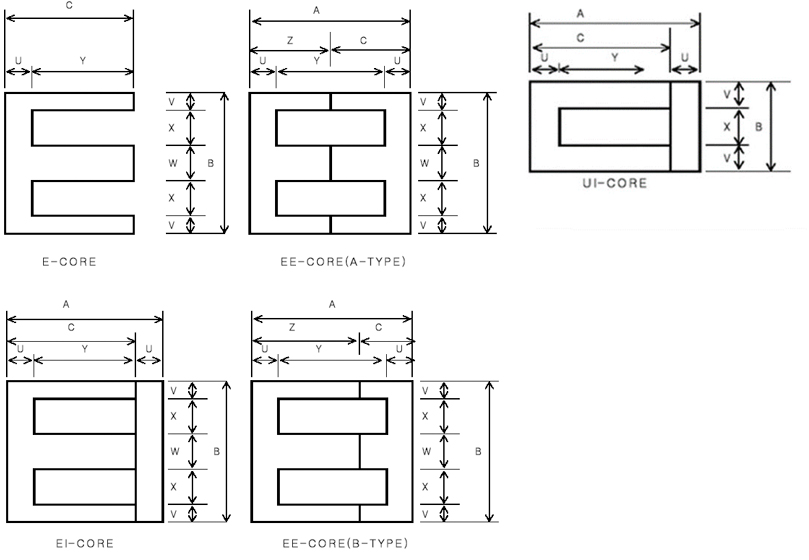

TYPE	A	B	C	U	V	W	X	Y	Z	pdf
ED-8(8X11)	-	8	11	2.7	1.2	2.4	1.6	8.3	-
ED-8LE(8.1X13.65)	-	8.1	13.65	2.75	1.405	2.45	1.42	10.9	-
ED-8LE(8X14)	-	8	14	2.7	1.2	2.4	1.6	11.3	-
ED-12.6	-	12.6	17	4.1	1.9	3.8	2.5	12.9	-
EL12.7(EL2829)	-	12.72	11.11	1.58	1.59	3.18	3.18	9.53	-
ED-20	-	20	26	6	0.3	6	4	20	-
14EI	10.5	14	8.75	1.75	1.75	3.5	3.5	7	-
14LE	-	14	10.5	1.75	1.75	3.5	3.5	8.75	-
16EI	14	16	12	2	2	4	4	10	-
16LE	-	16	14	2	2	4	4	12	-
16LE(LOSS TYPE)	-	16	16	2.4	2.4	4.8	3.2	13.6	-
19EI	15	19	12.5	2.5	2.375	4.75	4.75	10	-
19LE	-	19	15	2.5	2.375	4.75	4.75	12.5	-
185LE(GAP)	-	19.05	13.49	2.38	2.38	4.76	4.76	11.11	-
186EI	11.15	19.08	8.75	2.4	2.385	4.77	4.77	6.35	-
186LE	-	19.04	11.13	2.4	2.38	4.76	4.76	8.73	-
187EI	15391	19.08	13.51	2.4	2.385	4.77	4.77	11.11	-
187LE	-	19.08	15.9	2.4	2.385	4.77	4.77	13.5	-
19.51LE	-	19.51	14.7	3.7	3	4.5	4.505	11	-
20EE A TYPE	20.2	20	10.1	3	3	6	4	14.2	10.1
20EE B TYPE	20	20	6	3	3	6	4	14	14
24EI	18	24	15	3	3	6	6	12	-
24LE	-	24	18	3	3	6	6	15	-
25.4E	-	25.4	12.7	3.18	3.175	6.35	6.35	9.525	-
24-25LE	-	25.4	19.05	3.175	3.175	6.35	6.35	15.875	-
24-25EE(Air Gap)	19.05	25.4	6.35	3.175	3.175	6.35	6.35	12.7	12.7
26-27EE	27.01	31.75	9.45	4.77	4.76	9.53	6.35	17.47	17.47
27EE(GAP)	-	31.75	17.45	4.75	4.75	9.55	6.35	12.7	-
28EI	25	28	21.5	3.5	3.5	7	7	18	-
375EI	28.55	34.93	23.8	4.75	4.78	9.53	7.92	19.05	-
35EI	29.5	35	24.5	5	5	9.6	7.7	19.5	-
41EI	33	41	27	6	6	13	8	21	-
ZCT 12.2	12.2	8.8	-	-	-	-	-	-	-
ZCT 13.0	13	9.3	-	-	-	-	-	-	-
ZCT 13.5	13.35	9.85	-	-	-	-	-	-	-
ZCT 15	15	11	-	-	-	-	-	-	-
ZCT 17.8	17.8	13.35	-	-	-	-	-	-	-

.
